Drill Bit Coatings Guide

Choosing the right drill bit coating can improve drilling efficiency, extend tool life, and reduce wear. Different coatings are designed for different materials, so the best choice depends on what you are drilling.

Why Drill Bit Coatings Matter

During drilling, heat and friction are created between the drill bit and the workpiece. A suitable coating helps reduce friction, improve wear resistance, and protect the cutting edge.

However, the coating is only one part of the drill bit. The base material, flute design, cutting edge, drilling speed, and workpiece material are also important.

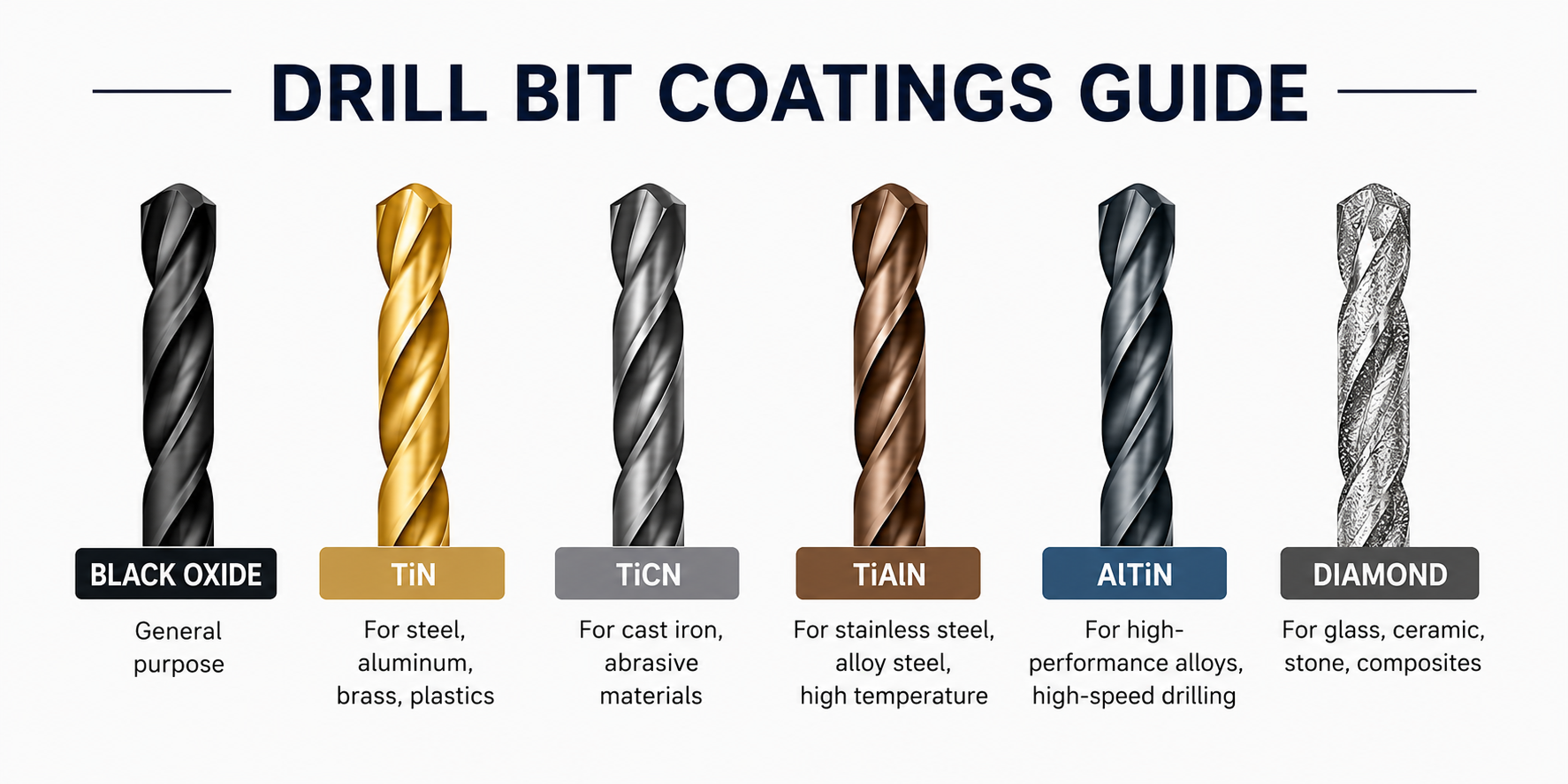

Common Drill Bit Coatings

Bright Finish

Bright finish drill bits are uncoated and have a polished surface. They are suitable for wood, plastic, aluminum, and light-duty metal drilling. They offer good chip flow but limited heat and wear resistance.

Black Oxide

Black oxide drill bits provide better corrosion resistance and lower friction than uncoated bits. They are a practical choice for general drilling in mild steel, carbon steel, aluminum, plastic, and wood.

Titanium Nitride

Titanium nitride, or TiN, is a gold-colored coating used to improve surface hardness and reduce friction. TiN-coated drill bits are suitable for mild steel, aluminum, brass, copper, and general metal drilling.

Titanium Aluminum Nitride

Titanium aluminum nitride, or TiAlN, offers better heat resistance than TiN. It is commonly used for stainless steel, alloy steel, cast iron, and other demanding metal drilling applications.

Titanium Carbonitride

Titanium carbonitride, or TiCN, provides strong wear resistance. It is suitable for abrasive materials, alloy steel, and cast iron where edge wear is a concern.

Cobalt Drill Bits

Cobalt is not just a surface coating. Cobalt drill bits are made from high-speed steel alloyed with cobalt, so the heat resistance goes through the whole bit. They are ideal for stainless steel, hardened steel, cast iron, and tough metal drilling.

Carbide-Tipped Drill Bits

Carbide-tipped drill bits are used for concrete, brick, stone, tile, and masonry. The carbide tip provides high hardness and abrasion resistance, especially when used with hammer drills or rotary hammers.

Diamond Drill Bits

Diamond drill bits are designed for hard and brittle materials such as glass, ceramic tile, porcelain, granite, marble, and stone. They require proper speed, light pressure, and cooling when needed.

Drill Bit Coating Comparison

How to Choose the Right Coating

For general metal drilling, black oxide or TiN-coated drill bits are usually enough.

For stainless steel and harder metals, cobalt drill bits or TiAlN-coated drill bits are better choices.

For aluminum, bright finish or TiN-coated bits work well because smooth chip removal is important.

For wood, the drill bit type is more important than the coating. Brad point bits, auger bits, spade bits, and Forstner bits are selected based on hole quality and size.

For concrete, brick, and masonry, carbide-tipped drill bits or SDS hammer drill bits should be used.

For glass, tile, porcelain, and stone, diamond drill bits are usually the better option.

Conclusion

Drill bit coatings help improve tool life, reduce friction, and support better drilling performance. Bright finish and black oxide bits are suitable for general use, TiN is good for common metal drilling, TiAlN and TiCN are used for tougher applications, cobalt is preferred for stainless steel and hard metals, while carbide-tipped and diamond drill bits are designed for masonry, tile, and stone.
