Why Do Drill Bits Turn Blue When Drilling Metal
September. 09, 2026

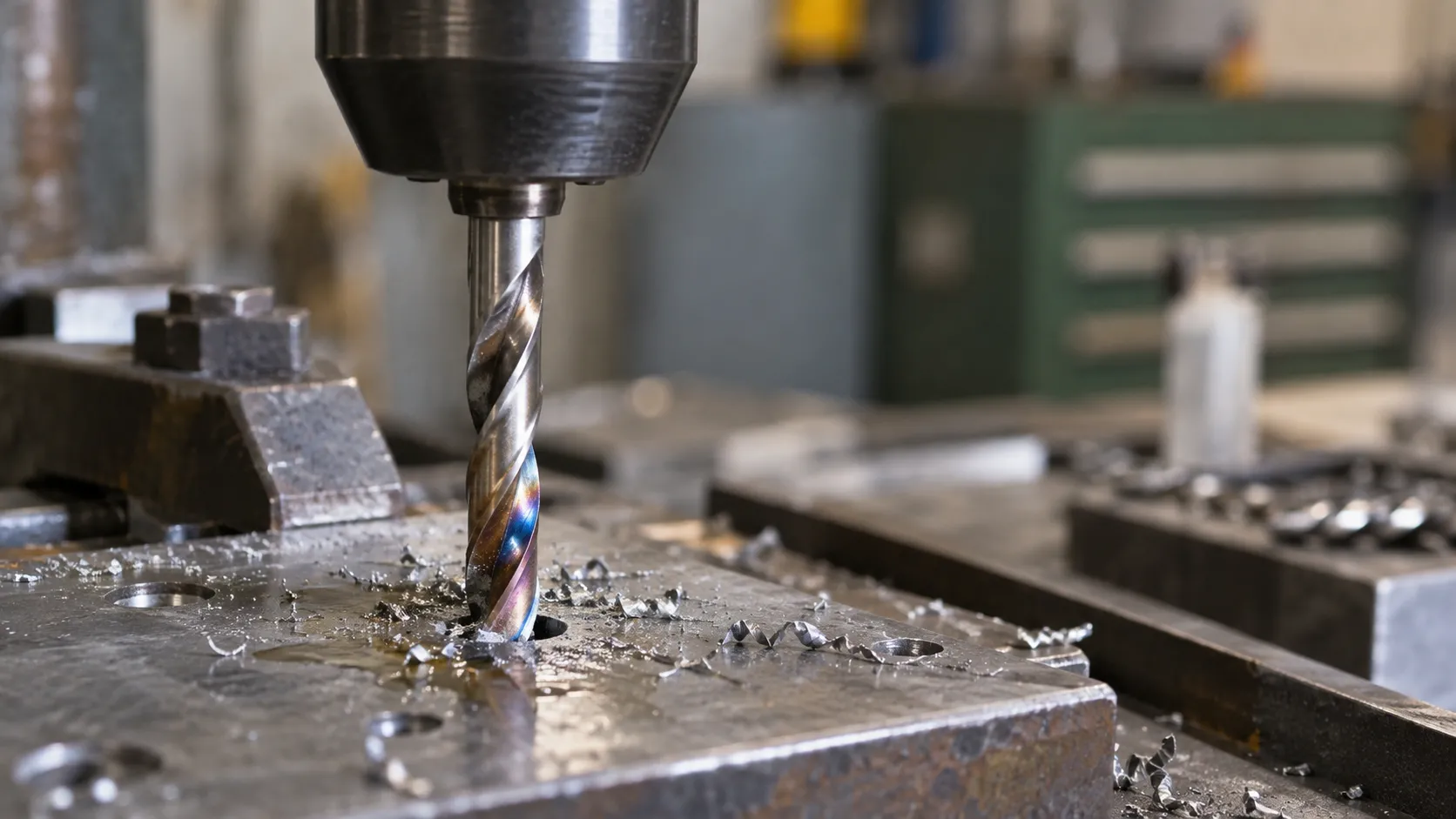

Have you ever noticed a drill bit turning blue after drilling through metal?
A blue or blue-purple color on a drill bit is usually a sign of excessive heat. During metal drilling, friction between the cutting edge and the workpiece generates heat. If the heat is not controlled properly, the surface of the drill bit can become discolored.
So, why do drill bits turn blue when drilling metal, and what can you do to prevent it?
1. Excessive Drilling Speed
One of the most common causes of a blue drill bit is drilling at too high an RPM.
Higher rotational speed creates more friction and heat at the cutting edges. When the temperature becomes excessive, the surface of an HSS drill bit can develop blue or purple discoloration.
The solution is simple: reduce the drilling speed, especially when working with larger drill bits or harder metals.
2. Too Much Pressure
Pushing the drill bit too hard into the metal can also generate excessive heat.
Excessive feed pressure increases the cutting load and friction. Instead of improving drilling efficiency, it can cause the cutting edge to overheat and wear prematurely.
Use steady and controlled pressure and allow the drill bit to cut the material properly.
3. Insufficient Lubrication
Metal drilling produces significant heat, particularly when drilling steel and stainless steel.
Without suitable cutting fluid or lubrication, friction increases and heat builds up around the cutting edge.
Proper lubrication can help:
Reduce friction
Control drilling temperature
Improve chip evacuation
Extend drill bit life
Maintain cutting performance
For difficult-to-machine metals, appropriate cooling and lubrication are particularly important.
4. The Wrong Drill Bit for the Material
Not all drill bits are designed for the same materials.
Standard HSS drill bits work well for many general metal drilling applications. However, when drilling harder materials or working under higher temperatures, cobalt HSS drill bits such as M35 can offer better heat resistance.
Choosing the right drill bit material according to the workpiece can help reduce overheating and premature wear.
5. Poor Chip Evacuation
Metal chips need to be removed efficiently through the drill bit's flutes.
If chips become trapped inside the hole, friction increases and heat can build up quickly. This is particularly common when drilling deep holes or using improper drilling parameters.
For deep-hole drilling, an appropriate drilling cycle and periodic chip removal can help control heat and improve tool life.
Is a Blue Drill Bit Still Usable?
A slight blue discoloration does not always mean that a drill bit is immediately unusable. However, significant blue or purple discoloration indicates that the drill bit has experienced excessive heat.
After overheating, the cutting edge may become softer, duller, or more susceptible to wear. If the drill bit has lost its sharp cutting edge or shows obvious damage, it should be replaced.
The key is not simply to remove the blue color, but to identify and correct the cause of overheating.
How to Prevent Drill Bits from Turning Blue
To reduce overheating during metal drilling:
Use the correct drilling speed for the material and drill diameter.
Avoid excessive feed pressure.
Use suitable cutting fluid or coolant.
Ensure efficient chip evacuation.
Choose the correct drill bit material.
Keep the workpiece securely clamped.
Replace worn or damaged drill bits.
Choose Reliable HSS Drill Bits for Metal Drilling
The performance of a drill bit depends on its material, geometry, heat treatment, surface finish, and manufacturing quality.
PTATOOLS supplies HSS twist drill bits for different metal drilling applications, including HSS 4341, M2/6542, and M35 options. Different finishes and configurations are available to meet different drilling requirements.
For wholesalers, distributors, importers, and tool brands, PTATOOLS also supports OEM, ODM, private-label, and bulk orders.
If your drill bits frequently turn blue during metal drilling, the first things to check are drilling speed, feed pressure, lubrication, chip evacuation, and drill bit selection.
Looking for HSS or M35 twist drill bits for metal drilling? Contact PTATOOLS for OEM, bulk, and customized drill bit solutions.
