PTATOOLS is an annular cutter manufacturer supplying HSS and carbide annular cutters, cutter sets, and carbide rail drill bits. Compare individual cutters by cutting diameter, depth of cut, and shank size, or browse sets for a range of hole sizes. For bulk orders or custom packaging, send us the models and quantities you need.
Annular cutters drill holes in metal by cutting around the edge of the hole and leaving a solid slug in the center. Start with the finished hole diameter and material thickness, then check the cutter's maximum cutting depth and compatibility with your machine.
| Model | Cutter type | Cutting diameter | Maximum cutting depth | Shank diameter |
|---|---|---|---|---|
| P19102 | HSS annular cutter | 12–60mm | 30mm | 19.05mm (3/4″) |
| P19103 | HSS annular cutter | 12–60mm | 50mm | 19.05mm (3/4″) |
| P19101 | Carbide annular cutter | 12–61mm | 35mm | 19.05mm (3/4″) |
The 30mm HSS core drill bit P19102 and the 50mm HSS core drill bit P19103 cover the same listed diameter range. Choose P19102 for applications within its 30mm cutting depth, or check P19103 when you need up to 50mm. For carbide requirements, compare the carbide core drill bit P19101 with your target hole diameter and cutting depth.

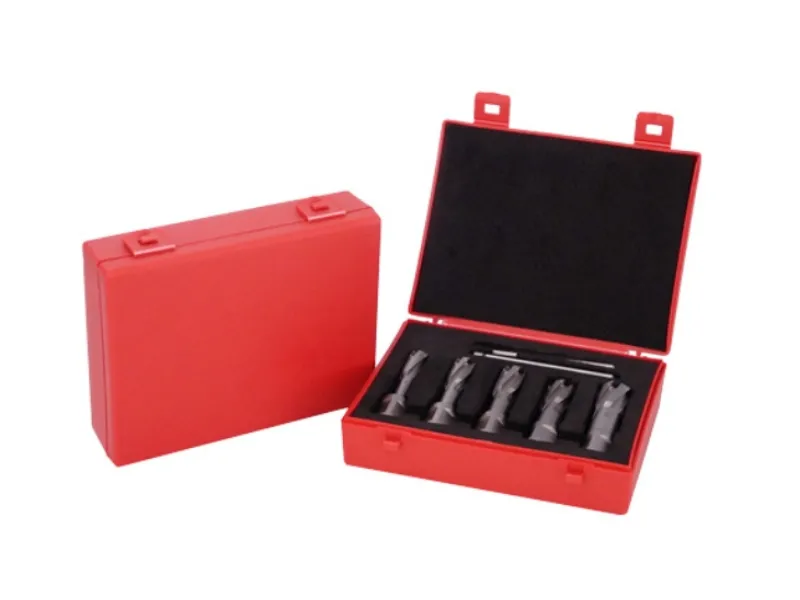

PTATOOLS offers HSS and carbide cutter sets, including the 13-piece HSS set P19110 and the 7-piece carbide set P19111. When comparing sets, check the individual cutter diameters, cutting depths, and included accessories. If you need specific sizes for a recurring job or a distributor assortment, list them in your inquiry so we can confirm which set fits your requirements.
The P19104 carbide rail drill bit has a maximum cutting depth of 25mm. The listed cutting diameters are 13.5mm and 14–38mm, with 18mm and 19mm shank diameter options. When requesting a quote, include your rail drill model and the required hole diameter so the shank fit can be checked.
In metalworking, a core drill bit may refer to an annular cutter. The term core drill bit is also used for diamond tools for concrete and stone. On this page, annular cutter refers to the HSS and carbide tools for metal drilling.
Check both the shank diameter and the mounting style required by your machine. If you are unsure, include your drill model or a photo of the holder with your inquiry.
Send the product model, required cutting diameter and depth, shank dimensions, and order quantity. For cutter sets, include the sizes you need. If you require custom packaging, specify it in the same request.
