Item No.: P19009
Size: 75mm
Cutters: 8Pcs1005, 2Pcs1304
Bit Type: Chamfer Plate Enhanced PDC Bit, Inverted Triangle High Strength PDC Bit
Adaptive Bed: Medium Hard Broken Rock F≤8, Hard Rock F≤10
Material: Steel body-Tungsten Carbide Alloy Steel, Cutters-Diamond Composite Sheet
Packing: Customized
OEM/ODM: Acceptable

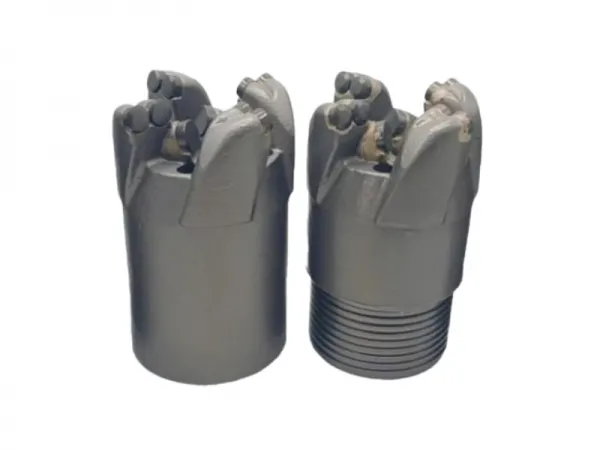

The Spiral Four-Wing Straight Concave Coreless Bit (75 mm) is engineered for demanding medium-to-hard formations (F ≤ 10). By integrating chamfer-plate and inverted-triangle high-strength PDC cutters, this bit balances fast penetration with exceptional cutter strength and heat resistance. The four-wing spiral body enhances stability and cuttings evacuation, making P19009 ideal for horizontal or inclined drilling where coreless, continuous advance is required.
